UNDERSTAND

THE PROBLEM

I believe that 3D printing is the future of fashion. With the current developments we are experiencing in this technology there are a great number of opportunities to create amazing new products and materials. Since we aren’t able to 3D print fabrics yet, I decided to team up with Cosine Additive and focus my thesis in designing flexible, adaptable, fashionable patterns. The intent is to explore the possibilities of creating wearable ‘textiles’ with structures that are designed in relation to function and materialization through anatomy, movement and utility. As far as additive manufacturing and the fashion industry are concerned they are mainly focused in accessories and conceptual sculptural pieces. However, these aren’t functional garments that adapt comfortably to the body and to human movement. Through this explorative project I hope that I can contribute into the future of fashion.

Designer:
Maria Alejandra Mora-Sanchez

WAYUU

SPRING 2019 COLLECTION
EXPLORATION OF 3D PRINTED FABRICS
INSPIRED BY THE TRADITIONAL WAYUU TEXTILES

The WAYUU tribe is an indigenous community of the Guajira Peninsula in northern Colombia and northwest Venezuela. They are well known for textiles, crafts and patterns which are inspired by nature and the tribe's surrounding environment.

EXPLORE

EARLY CONCEPTS

Studies - Renders - Sketches

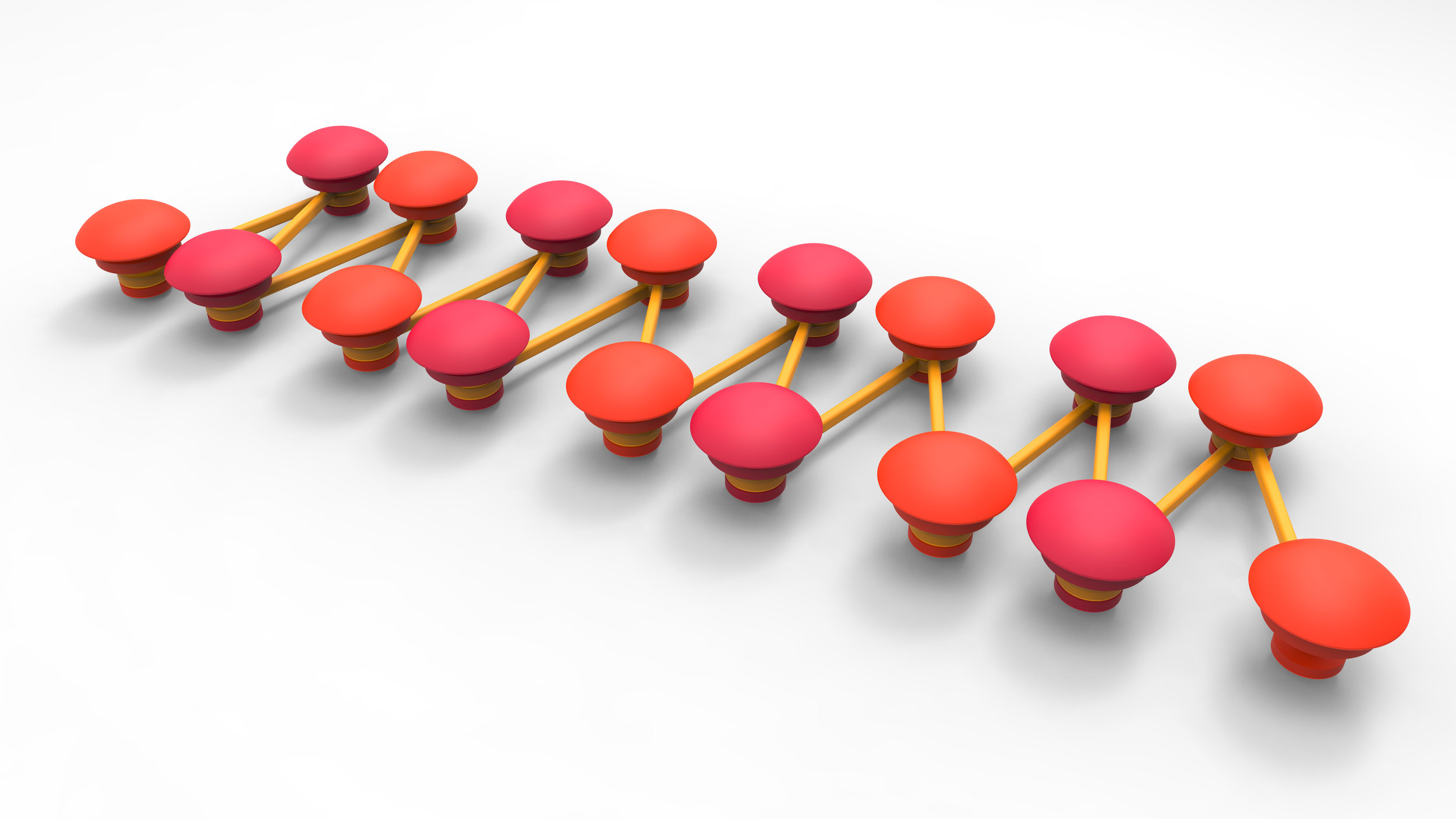

Mechanical Components & Fabric Weaving

During this stage I realized that mechanical components weren't practical for wearables and that the functional mechanisms must be incorporated within the design integrity of the textile pattern.

AUXETIC PATTERNS

the solution

The collection explores ready-to-wear auxetic patterns which expand under longitudinal strain and contract when compressed.

This behavior gives the swatches various beneficial effects compared to the current ones in the market.
Their added value lies in form, function and the geometric arrangements of the patterns.

THERMOPLASTIC POLYURETHANE (TPU)

THE Material

BENEFITS

auxetic patterns

Increased shear modulus.
Improved indentation resistance.
Enhanced plane strain fracture toughness.
Improved energy absorption properties.
Enable porosity/permeability variation with strain.
Ability to form synclastic curvatures.

thermoplastic polyurethane

High abrasion resistance.
Low-temperature performance.
High shear strength.
High elasticity (500% elongation).
Oil and grease resistance.

FFF VS SLS PRINTING

My initial method of fabrication was SLS printing. After analyzing the pros and cons between both I decided FFF would be the best option for this project.

TEXTILE COLLECTION

Adapts to body changes and body types

PROTOTYPING

MATERIAL Testing

Nylon - Ninja Flex - TPU

We tested different materials to see how the patterns behaved and attempted to print the patterns on stretchy fabric.
Testing took the most time and effort, but through each failure we became closer to our final TPU settings.

REFINE

FASHION COLLECTION

FINAL SKETCHES

EXECUTE

Look no. 2 | Pattern 6

LOOM

final dress

Loom is an expandable, adaptable, wearable and flexible 3D printed dress. It combines textiles and additive manufacturing by applying materials and auxetic structures that consider function and the human body.
